IP65 DISTRIBUTION ENCLOSURES

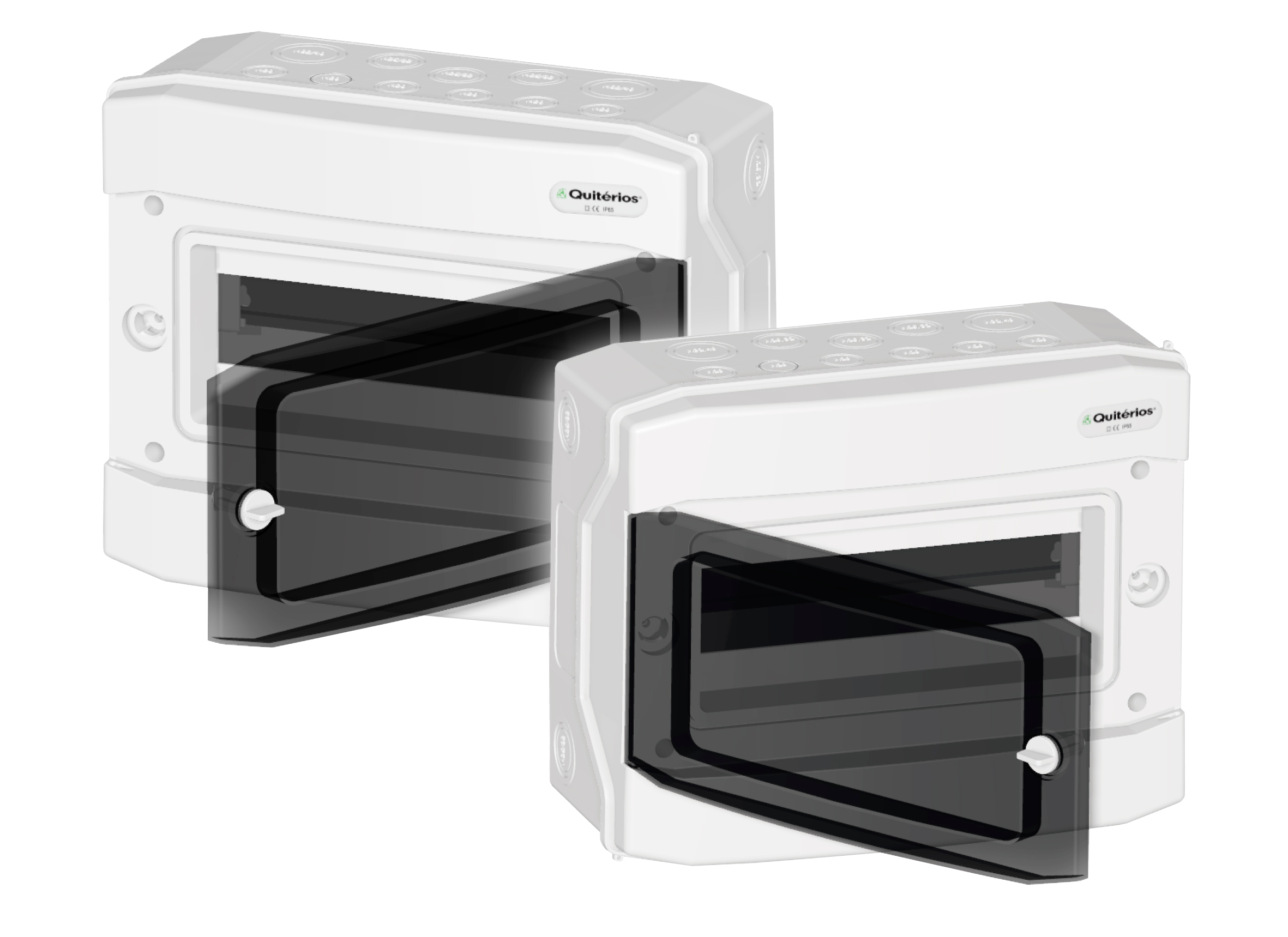

Fast changing of door position - right or left side - with 180º opening (except on the +60104, +60106 and +60108).
Rotating plastic handle lock that can be replaced by the metallic cam lock (code +61310).

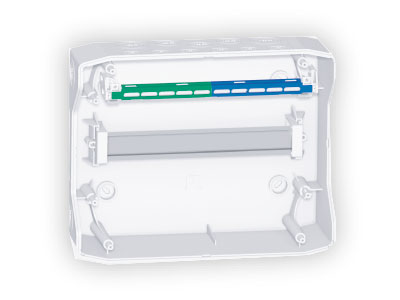

Depth-adjustable DIN rail holder (except on the +60104, +60106 and +60108).
Cropped sides to improve accessibility and handling.
Insulated neutral and earth busbars made of ABS + Polycarbonate + Fiberglass.

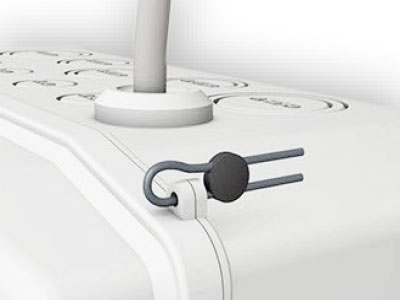

Allows sealing protection.
Pre-tears on the sides and tops with metric identification for cabling.
Identification of the distance between holes on the back to fix the box on the wall.
Blanking plate for empty modules; protective covers for fixing screws (Class II); box mounting kit (wall plugs and screws); user instructions; circuit identification labels.
| Code | Designation | Dimensions WxHxD (mm) | Add to list |
|---|---|---|---|
| +60104 | DISTRIBUTION ENCL (1x4) 4md IP65 SM | 127x200x120 | uni. |
| +60106 | DISTRIBUTION ENCL (1x6) 6md IP65 SM | 165x200x120 | uni. |
| +60108 | DISTRIBUTION ENCL (1x8) 8md IP65 SM | 200x200x120 | uni. |
| +60112 | DISTRIBUTION ENCL (1x12) 12md IP65 SM | 318x258x144 | uni. |
| +60118 | DISTRIBUTION ENCL (1x18) 18md IP65 SM | 428x258x144 | uni. |
| +60212 | DISTRIBUTION ENCL (2x12) 24md IP65 SM | 318x383x144 | uni. |
| +60312 | DISTRIBUTION ENCL (3x12) 36md IP65 SM | 318x535x144 | uni. |
| +60412 | DISTRIBUTION ENCL (4x12) 48md IP65 SM | 318x664x144 | uni. |
| +61116 | CONIC CABLE GROMMET M16 | uni. | |
| +61120 | CONIC CABLE GROMMET M20 | uni. | |
| +61125 | CONIC CABLE GROMMET M25 | uni. | |
| +61132 | CONIC CABLE GROMMET M32 | uni. | |
| +61140 | CONIC CABLE GROMMET M40 | uni. | |
| +61150 | CONIC CABLE GROMMET M50 | uni. | |
| +61216 | FLAT CABLE GROMMET M16 | uni. | |
| +61220 | FLAT CABLE GROMMET M20 | uni. | |
| +61225 | FLAT CABLE GROMMET M25 | uni. | |
| +61232 | FLAT CABLE GROMMET M32 | uni. | |
| +61310 | MONDEGO CAM LOCK W/ IDENTICAL KEYS | uni. | |
| +61320 | MONDEGO CAM LOCK W/ DIFFERENT KEYS | uni. |
